CBM Large Diameter Modular Adjustment Boring Head with Diameter over 200mm

INQUIRY FAVORITE

NEXT PREV

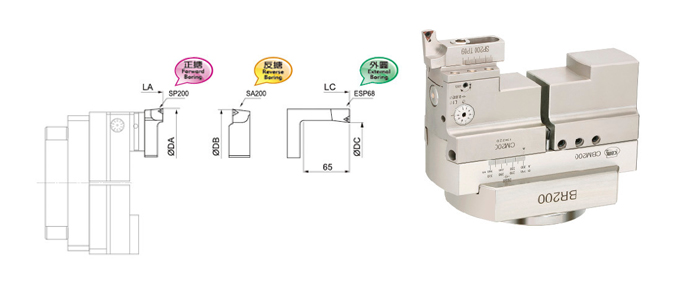

Boring Head Type	Type	CBM200	CBM300	CBM400	CBM500	CBM600	CBM900	CBM1200	CBM1600
	Boring Length	160	160	160	160	180	180	210	210
	Total Weight(kg)	7.68	8.48	9.28	10.08	16.48	22.78	35.05	40.25
	Forward Boring DiameterψDA(mm)	200-310	300-410	400-510	500-610	600-900	900-1200	1200-1600	1600-2000
	Reverse Boring DiameterψDB(mm)	210-320	310-420	410-520	510-620	610-910	910-1210	1210-1610	1610-2010
	External Boring DiameterψDC(mm)	190-310	290-410	390-510	490-610	590-910	890-1210	1190-1610	1590-2010
	External Boring Length LC(mm)	220	220	220	220	240	240	270	270
Module	Taper Shank	BT50-BST/NT50-BST Series				BT50-FMA47.625
	Flange	BR200				BR600	BR900	BR1200	BR1600
		Alloy Steel				Alum. Alloy
		2.7				8.8	13.5	24.4	29.6
	Extension Slide (Alum. Alloy)	RST200	RST300	RST400	RST500	RST300* 2(pieces)	RST400* 3(pieces)	RST500*2(pieces)
	Weight(kg)	1.1	1.9	2.7	3.5	3.8	5.4	7
	Balance Base /Weight	RCM200/1.7 KG
	Finish Head /Weight	RCM200/1.95 KG
	Insert Holder	Forward Boring SP68 / Reverse Boring SA68 / External Boring ESP68
	Applicable Insert	CC09 / M4 / T15, TP09 / M2.5 / T8, TC11 / M2.5 / T8

*Option of SA68 reverse cutting insert holder and ESP68 external cutting insert holder.
