Single row Crossed Roller Bearing O/ICBN type

Single row Crossed Roller Bearing O/ICBN type
Prev Next
  • Product Description
  • Product Feature

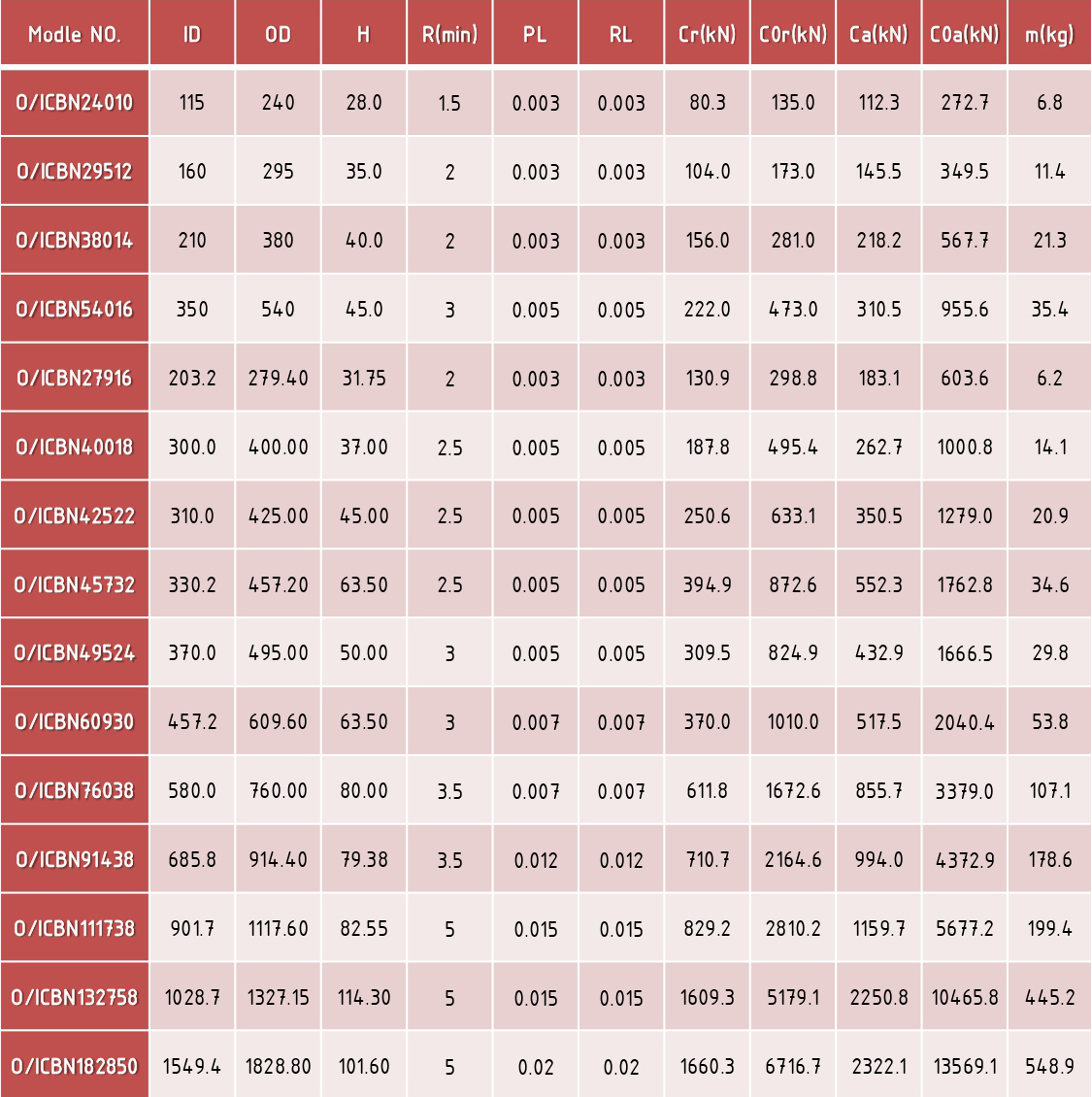

  • Product Specification
  • O/ICBN___(outer diameter)___(roller diameter) standard crossed roller bearing.
    Other specifications must be ordered in advance.
  • Only P2-graded bearings among production accuracy grades are produced (Highest among standard grades)
  • Customization : Maximum OD : 2500mm, Able to make bearing with gear teeth.
  • PL&RL mean static accurary.
  • Split inner ring type is suitable for outer ring rotation.
  • The thickness is equal.
  • The inner and outer have no mounting hole.
  • Consists of two inner semi-rings and an outer ring, or Consists of an inner ring and two outer semi rings .
