Single-row Crossed Roller Bearing CBT type

Single-row Crossed Roller Bearing CBT type
Prev Next
  • Product Description
  • Product Feature
  • Product Specification

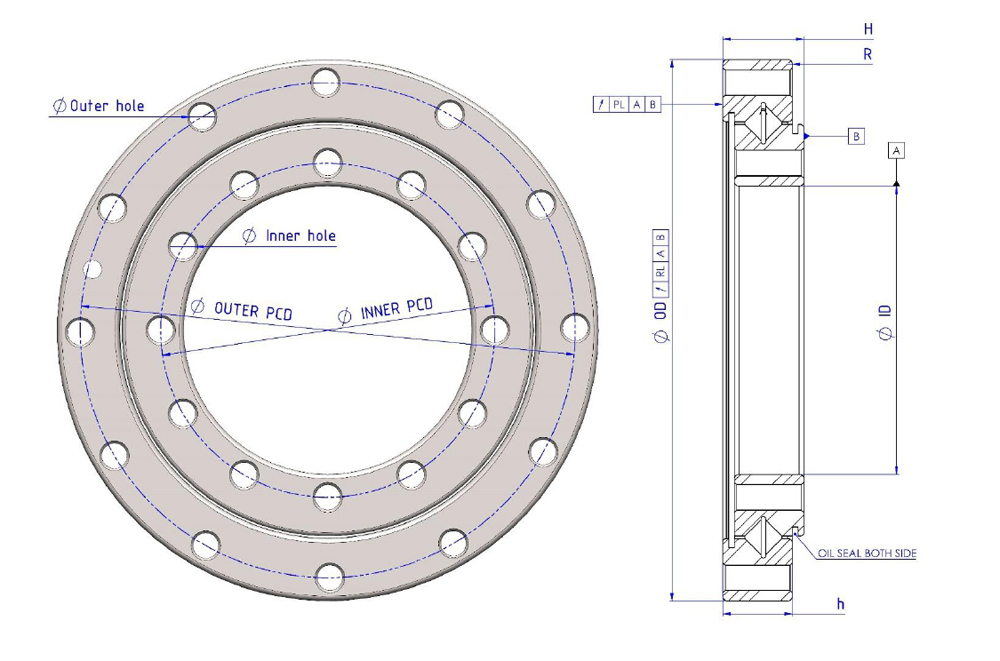

  • CBT___(outer diameter)___(roller diameter) standard crossed roller bearing.Lip oil seal is available, other specifications must be ordered in advance
  • Only P2-graded bearings among production accuracy grades are produced (Highest among standard grades)
  • Customization : Maximum OD : 2500mm, Able to make bearing with gear teeth.

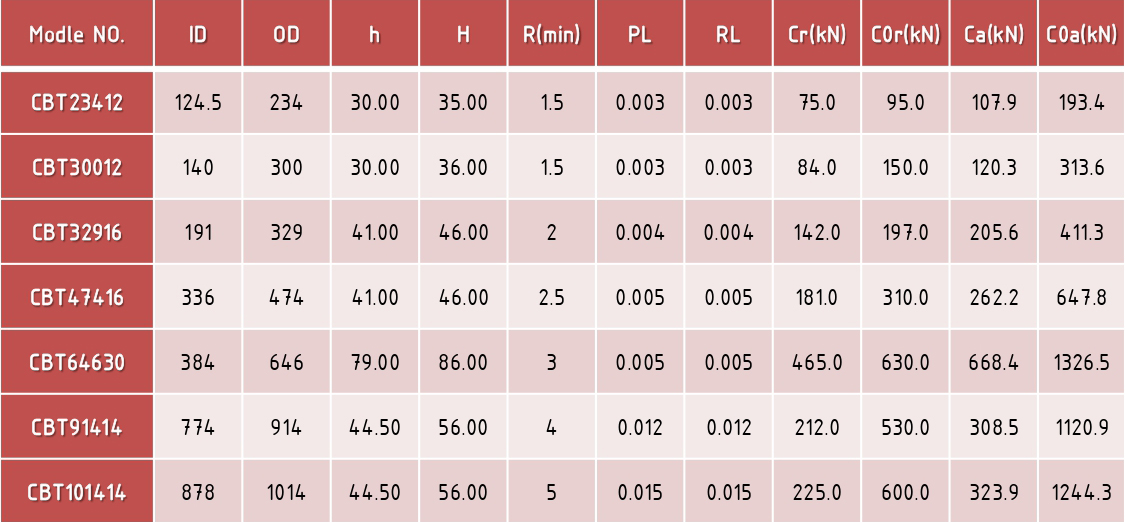

  • PL&RL mean static accurary
  • The thickness is not equal.
  • The inner and outer have several mounting hole.
