CBM精密微調反搪孔刀 + LBK刀柄 (MAS 403BT)

CBM精密微調反搪孔刀 + LBK刀柄 (MAS 403BT)
上一筆 下一筆
  • 產品規格

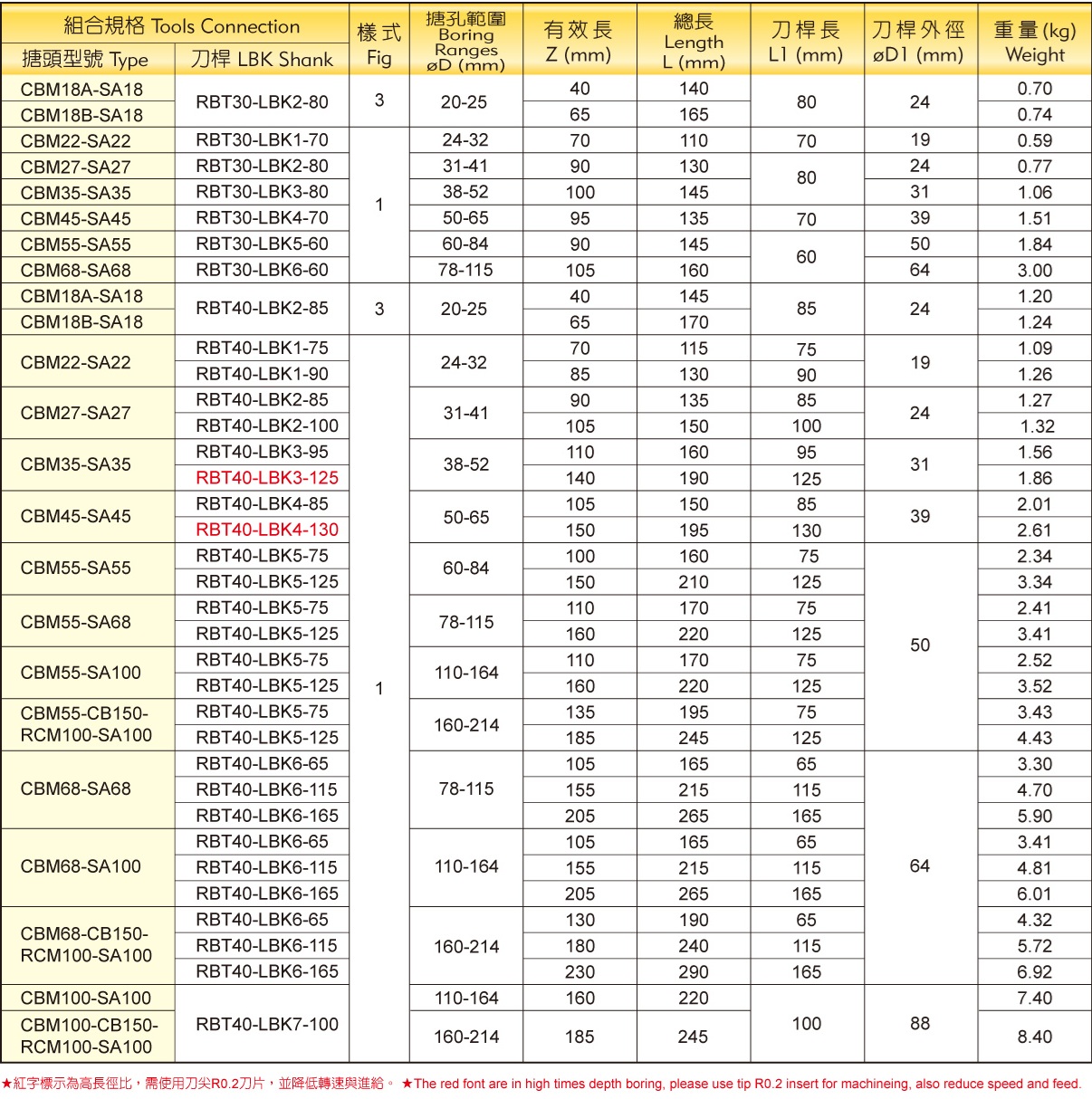

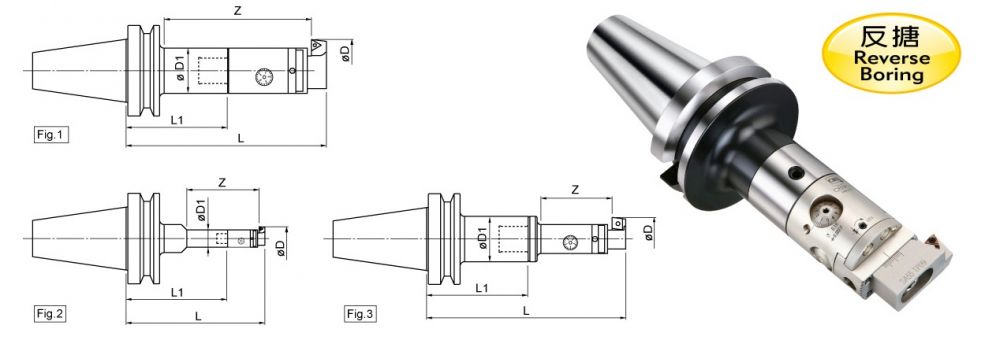

組合規格 Tools Connection樣式
Figure		搪孔範圍
Boring Range		總長
Total Length		有效長
Z		刀桿長
L1		刀桿外徑
ψD1		重量 kg
Weight
搪頭型號 Boring Head Type刀桿 LBK ShankψD(mm)
CBM18A-SA18 BT30-LBK2-80 3 20-25 145 55 80 24 0.70
CBM18B-SA18 170 80 0.74
CBM22-SA22 BT30-LBK1-70 1 24-32 110 70 70 19 0.59
CBM27-SA27 BT30-LBK2-80 31-41 130 90 80 24 0.77
CBM35-SA35 BT30-LBK3-80 38-52 145 100 31 1.06
CBM45-SA45 BT30-LBK4-70 50-65 150 110 70 39 1.51
CBM55-SA55 BT30-LBK5-60 60-84 145 90 60 50 1.84
CBM68-SA68 BT30-LBK6-60 78-115 160 105 64 3.00
CBM18A-SA18 BT40-LBK2-85 3 20-25 150 55 85 24 1.20
CBM18B-SA18 175 80 1.24
CBM22-SA22 BT40-LBK1-75 1 24-32 115 70 75 19 1.09
BT40-LBK1-105 145 100 105 1.29
CBM27-SA27 BT40-LBK2-85 31-41 135 90 85 24 1.27
BT40-LBK2-115 165 120 115 1.57
CBM35-SA35 BT40-LBK3-95 38-52 160 110 95 31 1.56
BT40-LBK3-125 190 140 125 1.86
BT40-LBK3-155 220 170 155 2.06
CBM45-SA45 BT40-LBK4-85 50-65 165 120 85 39 2.01
BT40-LBK4-130 210 165 130 2.61
BT40-LBK4-175 255 210 175 2.91
CBM55-SA55 BT40-LBK5-75 60-84 160 100 75 50 2.34
BT40-LBK5-125 210 150 125 3.34
BT40-LBK5-175 260 200 175 4.04
CBM55-SA68 BT40-LBK5-75 78-115 170 110 75 2.41
BT40-LBK5-125 220 160 125 3.41
BT40-LBK5-175 270 210 175 4.11
CBM55-SA100 BT40-LBK5-75 110-164 170 110 75 2.52
BT40-LBK5-125 220 160 125 3.52
BT40-LBK5-175 270 210 175 4.22
CBM55-CB150-RCM100-
SA100		 BT40-LBK5-75 160-214 195 135 75 3.43
BT40-LBK5-125 245 185 125 4.43
BT40-LBK5-175 295 235 175 5.13
CBM68-SA68 BT40-LBK6-65 78-115 165 105 65 64 3.30
BT40-LBK6-115 215 155 115 4.70
BT40-LBK6-165 265 205 165 5.90
CBM68-SA100 BT40-LBK6-65 110-164 165 105 65 3.41
BT40-LBK6-115 215 155 115 4.81
BT40-LBK6-165 265 205 165 6.01
CBM68-CB150-RCM100-
SA100		 BT40-LBK6-65 160-214 190 130 65 4.32
BT40-LBK6-115 240 180 115 5.72
BT40-LBK6-165 290 230 165 6.92
CBM100-SA100 BT40-BST-70 110-164 190 130 70 95 5.98
CBM100-CB150-RCM100-
SA100		 160-214 215 155 6.92

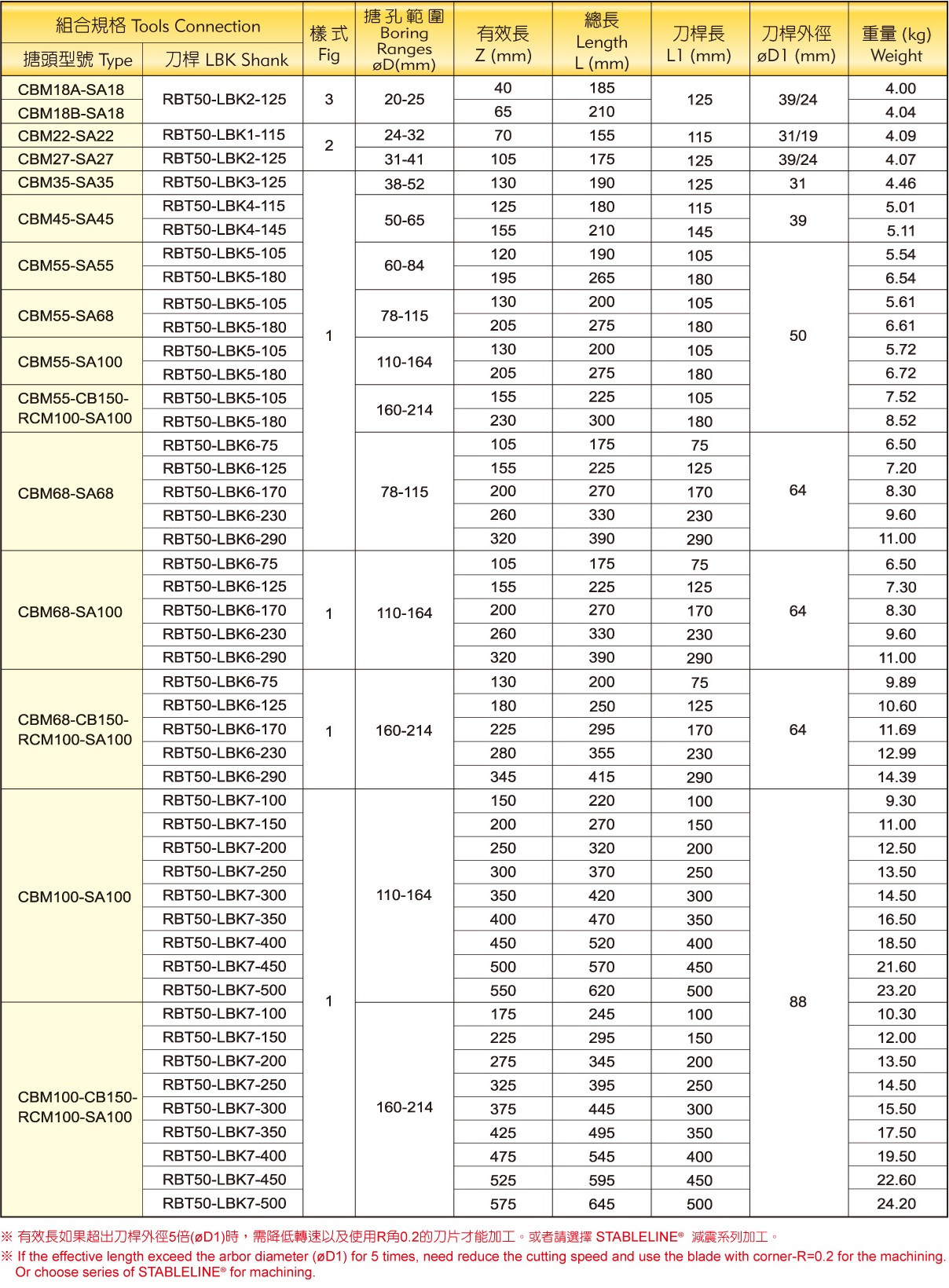

組合規格 Tools Connection樣式
Figure		搪孔範圍
Boring Range		總長
Total Length		有效長
Z		刀桿長
L1		刀桿外徑
ψD1		重量 kg
Weight
搪頭型號 Boring Head Type刀桿 LBK ShankψD(mm)
CBM18A-SA18 BT50-LBK2-110 3 20-25 175 55 110 24 4.00
CBM18B-SA18 200 80 4.04
CBM22-SA22 BT50-LBK1-115 2 24-32 155 70 115 31/19 4.09
BT50-LBK1-145 185 100 145 4.19
CBM27-SA27 BT50-LBK2-110 1 31-41 160 105 110 24 4.07
BT50-LBK2-140 190 135 140 4.17
CBM35-SA35 BT50-LBK3-125 38-52 190 130 125 31 4.46
BT50-LBK3-155 220 160 155 4.56
CBM45-SA45 BT50-LBK4-115 50-65 195 140 115 39 5.01
BT50-LBK4-145 225 170 145 5.11
BT50-LBK4-175 255 200 175 5.51
BT50-LBK4-205 285 230 205 5.61
CBM55-SA55 BT50-LBK5-105 60-84 190 120 105 50 5.54
BT50-LBK5-180 265 195 180 6.54
BT50-LBK5-240 325 255 240 7.24
BT50-LBK5-300 2 385 ＜ψ64=255
＞ψ64=315		 300 64/50 8.64
CBM55-SA68 BT50-LBK5-105 1 78-115 200 130 105 50 5.61
BT50-LBK5-180 275 205 180 6.61
BT50-LBK5-240 335 265 240 7.31
BT50-LBK5-300 2 395 325 300 64/50 8.71
CBM55-SA100 BT50-LBK5-105 1 110-164 200 130 105 50 5.72
BT50-LBK5-180 275 205 180 6.72
BT50-LBK5-240 335 265 240 7.42
BT50-LBK5-300 2 395 325 300 64/50 8.82
CBM55-CB150-RCM100-
SA100		 BT50-LBK5-105 1 160-214 225 155 105 50 7.52
BT50-LBK5-180 300 230 180 8.52
BT50-LBK5-240 360 290 240 9.22
BT50-LBK5-300 2 420 350 300 64/50 10.62
CBM68-SA68 BT50-LBK6-95 1 78-115 195 125 95 64 6.50
BT50-LBK6-170 270 200 170 8.30
BT50-LBK6-230 330 260 230 9.60
BT50-LBK6-290 390 320 290 11.00
BT50-LBK6-350 2 450 ＜ψ95=260
＞ψ95=380		 350 90/64 15.50
IBT50-LBK6-350 1 380 64 13.20
CBM68-SA100 BT50-LBK6-95 1 110-164 195 125 95 6.50
BT50-LBK6-170 270 200 170 8.30
BT50-LBK6-230 330 260 230 9.60
BT50-LBK6-290 390 320 290 11.00
BT50-LBK6-350 2 450 380 350 90/64 15.50
IBT50-LBK6-350 1 64 13.20
CBM68-CB150-RCM100-
SA100		 BT50-LBK6-95 1 160-214 220 150 95 9.89
BT50-LBK6-170 295 225 170 11.69
BT50-LBK6-230 355 280 230 12.99
BT50-LBK6-290 415 345 290 14.39
BT50-LBK6-350 2 475 405 350 90/64 18.89
IBT50-LBK6-350 1 64 16.59
CBM100-SA100 BT50-BST-100 110-164 220 150 100 95 7.88
BT50-BST-150 270 200 150 9.58
BT50-BST-200 320 250 200 12.38
BT50-BST-250 370 300 250 14.28
BT50-BST-300 420 350 300 17.18
BT50-BST-350 470 400 350 19.58
BT50-BST-400 520 450 400 22.08
CBM100-CB150-RCM100-
SA100		 BT50-BST-100 160-214 245 175 100 8.82
BT50-BST-150 295 225 150 10.52
BT50-BST-200 345 275 200 13.32
BT50-BST-250 395 325 250 15.22
BT50-BST-300 445 375 300 18.12
BT50-BST-350 495 425 350 20.52
BT50-BST-400 545 475 400 23.02

*IBT是專為抑制搪孔共振而改良之專用刀桿。
