HSK-E-PFK 筒夾刀把

上一筆下一筆

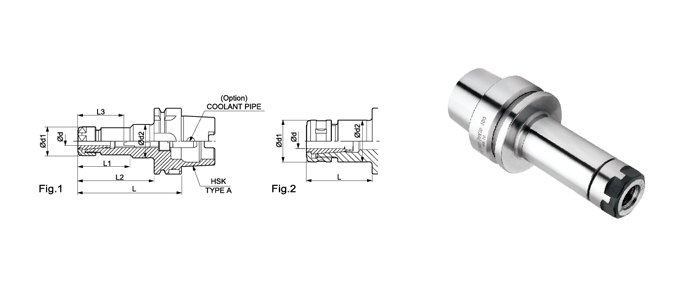

Model No.		Fig.	Range Ød	Ød1 (mm)	Ød2 (mm)	L(mm)	L1(mm)	L2(mm)	Tool Clamping Depth L3	Nut	Screw	Collet	Wrench
HSK40E	PFK6-080	2	0.7~6	19.5	19.5	80	-	60	21~30	CAP-PFK6	PFK-M8	SK6	PHS-PFK6
HSK40E	PFK10-080	2	1.75~10	27.5	27.5	80	-	60	max 58.5	CAP-PFK10	-	SK10	PHS-PFK10
HSK40E	PFK16-080	2	2.75~16	40	40	80	-	60	max 49.5	CAP-PFK16	-	SK16	PHS-PFK16
HSK50E	PFK6-100	1	0.7~6	19.5	32	100	63	74	21~35	CAP-PFK6	PFK-M8	SK6	PHS-PFK6
HSK50E	PFK10-100	2	1.75~10	27.5	27.5	100	-	74	30~40	CAP-PFK10	PFK-M12	SK10	PHS-PFK10
HSK50E	PFK16-100	2	2.75~16	40	40	100	-	74	40~48	CAP-PFK16	PFK-M12	SK16	PHS-PFK16
