BT-SK 刀桿

BT-SK 刀桿
上一筆 下一筆
  • 產品特性
  • 產品規格
  • The SK chuck is according to design of angle 8° with high accuracy and high gripping range. The gripping torque is higher than standard ER chick.
  • The dynamic balance of BT30 and BT40 SK chuck can reach 15000 rpm x 2.5G.

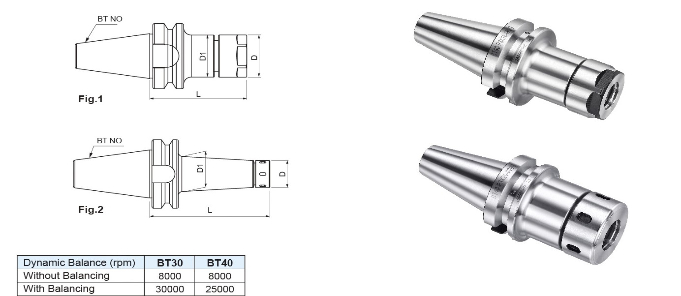

Model No.Fig.Collet RangeL (mm)ØD1ØD夾持深度ColletWeight (kgs)
BT30-SK06-30 1 2-6 60 20 20 60 SK06 -
BT30-SK06-90 1 2-6 90 20 20 80 SK06 -
BT30-SK10-45 1 2-10 45 30 30 50 SK10 -
BT30-SK10-60 1 2-10 60 30 30 60 SK10 0.54
BT30-SK10-90 1 2-10 90 30 30 80 SK10 0.75
BT30-SK10-130 1 2-10 130 30 30 100 SK10 -
BT30-SK13-60 1 3-13 60 35 37 65 SK13 -
BT30-SK13-75 1 3-13 75 35 37 75 SK13 -
BT30-SK13-90 1 3-13 90 35 35 85 SK13 0.76
BT30-SK16-60 1 3-16 60 35 37 65 SK16 0.56
BT30-SK16-90 1 3-16 90 40 42 85 SK16 0.84
BT30-SK20-60 1 3-20 60 40 42 65 SK20 -
BT30-SK20-90 1 3-20 90 50 51 75 SK20 -
BT30-SK25-90 1 4-25 90 55 56 85 SK25 -
BT40-SK06-60 1 2-6 60 20 20 60 SK06 1.00
BT40-SK06-90 1 2-6 90 20 20 100 SK06 -
BT40-SK10-60 1 2-10 60 30 30 70 SK10 -
BT40-SK10-90 1 2-10 90 30 30 80 SK10 1.10
BT40-SK10-120 1 2-10 120 30 30 100 SK10 1.20
BT40-SK10-150 2 2-10 150 30 30 100 SK10 1.30
BT40-SK10-165 2 2-10 165 36 30 100 SK10 1.40
BT40-SK10-200 2 2-10 200 36 30 100 SK10 1.50
BT40-SK13-60 1 3-13 60 35 37 70 SK13 -
BT40-SK13-90 1 3-13 90 35 37 80 SK13 -
BT40-SK13-120 1 3-13 120 35 37 100 SK13 -
BT40-SK13-150 2 3-13 150 35 37 100 SK13 -
BT40-SK13-165 2 3-13 165 42 37 100 SK13 -
BT40-SK13-200 2 3-13 200 42 37 100 SK13 -
BT40-SK16-60 1 3-16 60 40 42 70 SK16 1.00
BT40-SK16-90 1 3-16 90 40 42 75 SK16 1.09
BT40-SK16-120 1 3-16 120 40 42 130 SK16 1.68
BT40-SK16-150 1 3-16 150 40 42 150 SK16 -
BT40-SK16-165 2 3-16 165 50 42 150 SK16 2.08
BT40-SK16-200 2 3-16 200 50 42 150 SK16 -
BT40-SK20-60 1 3-20 60 50 51 80 SK20 -
BT40-SK20-90 1 3-20 90 50 51 100 SK20 1.56
BT40-SK20-120 1 3-20 120 50 51 120 SK20 1.93
BT40-SK20-150 1 3-20 150 50 51 120 SK20 2.39
BT40-SK20-200 1 3-20 200 50 51 120 SK20 -
BT40-SK25-80 1 4-25 80 55 56 95 SK25 -
BT40-SK25-120 1 4-25 120 55 56 120 SK25 -
BT40-SK25-150 1 4-25 150 55 56 120 SK25 -
BT40-SK25-200 1 4-25 200 55 56 120 SK25 -
BT50-SK10-105 1 2-10 105 30 30 100 SK10 3.83
BT50-SK10-135 1 2-10 135 30 30 100 SK10 -
BT50-SK10-150 2 2-10 150 34 30 120 SK10 -
BT50-SK10-165 2 2-10 165 34 30 120 SK10 4.17
BT50-SK10-200 2 2-10 200 36 30 120 SK10 4.33
BT50-SK13-105 1 3-13 105 35 37 100 SK13 -
BT50-SK13-135 1 3-13 135 35 37 120 SK13 4.14
BT50-SK13-150 2 3-13 150 40 37 130 SK13 4.34
BT50-SK13-165 2 3-13 165 40 37 150 SK13 4.45
BT50-SK13-200 2 3-13 200 42 37 150 SK13 4.79
BT50-SK16-65 1 3-16 65 40 42 80 SK16 -
BT50-SK16-105 1 3-16 105 40 42 120 SK16 -
BT50-SK16-135 1 3-16 135 40 42 130 SK16 4.23
BT50-SK16-150 1 3-16 150 40 42 150 SK16 4.39
BT50-SK16-165 2 3-16 165 46 42 150 SK16 4.63
BT50-SK16-200 2 3-16 200 46 42 150 SK16 5.03
BT50-SK16-250 2 3-16 250 48 42 180 SK16 5.51
BT50-SK16-300 2 3-16 300 52 42 180 SK16 6.41
BT50-SK20-105 1 3-20 105 50 51 100 SK20 4.19
BT50-SK20-135 1 3-20 135 50 51 120 SK20 -
BT50-SK20-150 1 3-20 150 50 51 150 SK20 -
BT50-SK20-165 1 3-20 165 50 51 180 SK20 -
BT50-SK20-200 1 3-20 200 50 51 180 SK20 -
BT50-SK20-250 2 3-20 250 58 51 180 SK20 -
BT50-SK20-300 2 3-20 300 58 51 180 SK20 -
BT50-SK25-105 1 4-25 105 55 56 120 SK25 4.25
BT50-SK25-135 1 4-25 135 55 56 120 SK25 -
BT50-SK25-150 1 4-25 150 55 56 150 SK25 4.97
BT50-SK25-165 1 4-25 165 55 56 150 SK25 -
BT50-SK25-200 1 4-25 200 55 56 150 SK25 5.67
BT50-SK25-250 2 4-25 250 62 56 150 SK25 6.89
BT50-SK25-300 2 4-25 300 62 56 150 SK25 -
