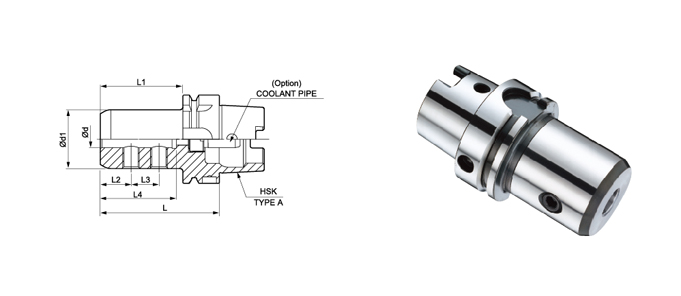

HSK-A SLE 側固刀把

HSK-A SLE 側固刀把
上一筆 下一筆
  • 產品規格
Model No.Range ØdØd1 (mm)L (mm)L1 (mm)L2 (mm)L3 (mm)L4 (mm)Screw
HSK50A SLE06-065 6 25 65 39 18 - 36 SLA-M6
HSK50A SLE08-065 8 28 65 39 18 - 40 SLA-M8
HSK50A SLE10-080 10 35 80 54 20 - 50 SLA-M10
HSK50A SLE12-080 12 42 80 54 22.5 - 55 SLA-M12
HSK50A SLE16-080 16 48 80 54 24 - 55 SLA-M12
HSK50A SLE20-080 20 52 80 54 25 - 55 SLA-M16
HSK63A SLE06-065 6 25 65 39 18 - 36 SLA-M6
HSK63A SLE08-065 8 28 65 39 18 - 40 SLA-M8
HSK63A SLE10-080 10 35 80 54 20 - 50 SLA-M10
HSK63A SLE12-080 12 42 80 54 22.5 - 55 SLA-M12
HSK63A SLE16-080 16 48 80 54 24 - 55 SLA-M12
HSK63A SLE20-080 20 52 80 54 25 - 55 SLA-M12
HSK100A SLE16-100 16 48 100 71 24 - 60 SLA-M12
HSK100A SLE20-100 20 52 100 71 25 - 60 SLA-M16
HSK100A SLE25-100 25 57 100 71 24 25 65 SLA-M16
HSK100A SLE32-100 32 63 100 71 24 28 70 SLA-M16
HSK100A SLE40-120 40 82 120 91 30 32 80 SLA-M20
