JIS 快換式絲攻 - 剛性

JIS 快換式絲攻 - 剛性
上一筆 下一筆
  • 產品規格
Model No.TC308B
JIS Tap		Tap Shank 絲攻尺寸Capacity

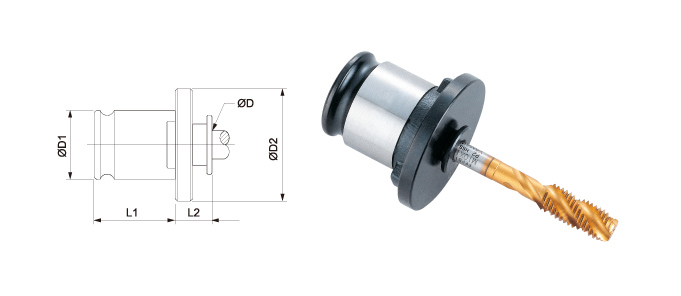

攻牙能力		L1L2ØD1ØD2
ØD柄徑□四方孔(mm)(mm)(mm)(mm)
35802 M2 - - 3.0 2.5 M3~M8 19.5 7 12.65 22
35804 M3 - #5, #6 4.0 3.2 M3~M8 19.5 7 12.65 22
35806 M4 M4.5 #8 5.0 4.0 M3~M8 19.5 7 12.65 22
35808 M5 M5.5 #10 5.5 4.5 M3~M8 19.5 7 12.65 22
35810 M6 - UNC 1/4 6.0 4.5 M3~M8 19.5 7 12.65 22
35812 - - UNC 5/16 6.1 5.0 M3~M8 19.5 7 12.65 22
35814 M8 M7 - 6.2 5.0 M3~M8 19.5 7 12.65 22
Model No.TC312B
JIS Tap		Tap Shank 絲攻尺寸Capacity
攻牙能力		L1L2ØD1ØD2
ØD柄徑□四方孔(mm)(mm)(mm)(mm)
35401 M2 - - 3.0 2.5 M3~M14 22 7 19 30
35400 M3 - #5, #6 4.0 3.2 M3~M14 22 7 19 30
35402 M4 M4.5 #8 5.0 4.0 M3~M14 22 7 19 30
35404 M5 M5.5 #10 5.5 4.5 M3~M14 22 7 19 30
35406 M6 - UNC 1/4 6.0 4.5 M3~M14 22 7 19 30
35408 - - UCN 5/16 6.1 5.0 M3~M14 22 7 19 30
35410 M8 M7 - 6.2 5.0 M3~M14 22 7 19 30
35412 M10 M9 UNC 3/8 7.0 5.5 M3~M14 22 7 19 30
35413 - M11 UNC 7/16 8.0 6.0 M3~M14 22 7 19 30
35414 M12 - - 8.5 6.5 M3~M14 22 7 19 30
35416 - - UNC 1/2 9.0 7.0 M3~M14 22 7 19 30
35418 M14 M15 UNC 9/16 10.5 8.0 M3~M14 22 7 19 30
Model No.TC820B
JIS Tap		Tap Shank 絲攻尺寸Capacity
攻牙能力		L1L2ØD1ØD2
ØD柄徑□四方孔(mm)(mm)(mm)(mm)
35500 M8 M7 - 6.2 5.0 M8~M24 36 11 31 48
35502 M10 M9 UNC 3/8 7.0 5.5 M8~M24 36 11 31 48
35503 - M11 UNC 7/16 8.0 6 M8~M24 36 11 31 48
35504 M12 - - 8.5 6.5 M8~M24 36 11 31 48
35506 - - UNC 1/2 9.0 7.0 M8~M24 36 11 31 48
35508 M14 M15 UNC 9/16 10.5 8.0 M8~M24 36 11 31 48
35510 - - UNC 5/8 12 9.0 M8~M24 36 11 31 48
35512 M16 - - 12.5 10.0 M8~M24 36 11 31 48
35513 - M17 - 13.0 10.0 M8~M24 36 11 31 48
35514 M18 - UNC 3/4 14.0 11.0 M8~M24 36 11 31 48
35516 M20 - - 15.0 12.0 M8~M24 36 11 31 48
35518 M22 - UNC 7/8 17.0 13.0 M8~M24 36 11 31 48
35520 M24 M25 - 19.0 15.0 M8~M24 36 11 31 48
Model No.TC1433B
JIS Tap		Tap Shank 絲攻尺寸Capacity
攻牙能力		L1L2ØD1ØD2
ØD柄徑□四方孔(mm)(mm)(mm)(mm)
35600 M14 M15 UNC 9/16 10.5 8.0 M14~M36 56 14 48 70
35602 - - UCN 5/8 12.0 9.0 M14~M36 56 14 48 70
35604 M16 - - 12.5 10.0 M14~M36 56 14 48 70
35606 - M17 - 13.0 10.3 M14~M36 56 14 48 70
35608 M18 - UNC 3/4 14.0 11.0 M14~M36 56 14 48 70
35610 M20 - - 15.0 12.0 M14~M36 56 14 48 70
35612 M22 - UCN 7/8 17.0 13.0 M14~M36 56 14 48 70
35614 M24 M25 - 19.0 15.0 M14~M36 56 14 48 70
35616 M27 M26 UCN 1 20.0 15.0 M14~M36 56 14 48 70
35618 M28 - - 21.0 17.0 M14~M36 56 14 48 70
35620 - - UNC 1-1/8 22.0 17.0 M14~M36 56 14 48 70
35622 M30 - - 23.0 17.0 M14~M36 56 14 48 70
35624 M32 - UNC 1-1/4 24.0 19.0 M14~M36 56 14 48 70
35626 M33 - - 25.0 19.0 M14~M36 56 14 48 70
35628 M35 M34 UNC 1-3/8 26.0 21.0 M14~M36 56 14 48 70
35630 M36 - - 28.0 21.0 M14~M36 56 14 48 70
