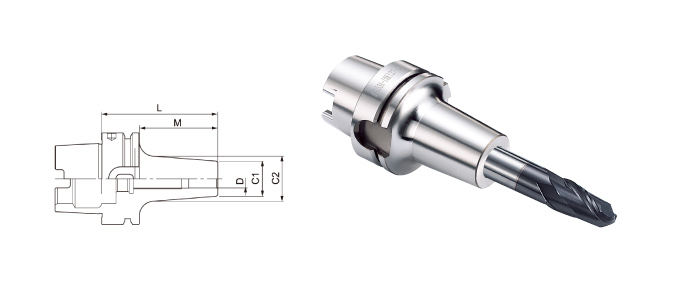

HSK 燒結式刀柄

上一筆下一筆

Model No.	ØD (mm)	C1 (mm)	C2 (mm)	L (mm)	Weight (Kgs)
HSK40E-ISK04-70	4	10	18.5	70	-
HSK40E-ISK06-80	6	21	27	80	-
HSK40E-ISK08-80	8	21	27	80	-
HSK40E-ISK10-80	10	27	34	80	-
HSK50E-ISK04-60S	4	10	-	60	0.7
HSK50E-ISK06-80S	6	21	27	80	0.7
HSK50E-ISK06-130S	6	21	27	130	0.8
HSK50E-ISK06-160S	6	21	27	160	1.0
HSK50E-ISK08-80S	8	21	27	80	0.75
HSK50E-ISK08-130S	8	21	27	130	0.8
HSK50E-ISK08-160S	8	21	27	160	1.0
HSK50E-ISK10-85S	10	24	32	85	0.8
HSK50E-ISK10-130S	10	24	32	130	0.9
HSK50E-ISK10-160S	10	24	32	160	1.1
HSK50E-ISK12-90S	12	24	32	90	0.8
HSK50E-ISK12-130S	12	24	32	130	0.9
HSK50E-ISK12-160S	12	24	32	160	1.1
HSK50E-ISK16-95S	16	27	34	65	0.9
HSK50E-ISK16-130S	16	27	34	130	1.1
HSK50E-ISK16-160S	16	27	34	160	1.2

Model No.	ØD (mm)	C1 (mm)	C2 (mm)	L (mm)	Weight (Kgs)
HSK63A-ISK04-80S	4	10	-	80	1.0
HSK63A-ISK06-80S	6	21	27	80	1.0
HSK63A-ISK06-130S	6	21	27	130	1.05
HSK63A-ISK06-160S	6	21	27	160	1.3
HSK63A-ISK08-80S	8	21	27	80	1.0
HSK63A-ISK08-130S	8	21	27	130	1.05
HSK63A-ISK08-160S	8	21	27	160	1.4
HSK63A-ISK10-85S	10	24	32	85	1.0
HSK63A-ISK10-130S	10	24	32	130	1.2
HSK63A-ISK10-160S	10	24	32	160	1.5
HSK63A-ISK12-90S	12	24	32	90	1.0
HSK63A-ISK12-130S	12	24	32	130	1.15
HSK63A-ISK12-160S	12	24	32	160	1.5
HSK63A-ISK16-95S	16	27	34	95	1.0
HSK63A-ISK16-130S	16	27	34	130	1.2
HSK63A-ISK16-160S	16	27	34	160	1.7
HSK63A-ISK20-100S	20	33	42	100	1.15
HSK63A-ISK20-130S	20	33	42	130	1.45
HSK63A-ISK20-160S	20	33	42	160	1.8
HSK63A-ISK25-115S	25	44	53	115	1.3
HSK63A-ISK25-130S	25	44	53	130	2.0
HSK63A-ISK25-160S	25	44	53	160	1.9
HSK63A-ISK32-120S	32	44	53	120	1.6
HSK63A-ISK32-160S	32	44	53	160	1.9
HSK100A-ISK04-180	4	9	22	180	-
HSK100A-ISK06-180	6	13	26	180	-
HSK100A-ISK08-180	8	15	28	180	-
HSK100A-ISK10-160	10	17	28	160	-
HSK100A-ISK10-180	10	17	30	180	-
HSK100A-ISK12-160	12	19	30	160	-
HSK100A-ISK12-180	12	19	32	180	-
HSK100A-ISK16-120	16	23	30	120	-
HSK100A-ISK16-180	16	23	36	180	-
HSK100A-ISK20-155	20	33	44.5	155	-
HSK100A-ISK20-180	20	33	47.5	180	-
