新型RBH-LA雙刃粗搪刀 + LBK刀柄

新型RBH-LA雙刃粗搪刀 + LBK刀柄
上一筆 下一筆

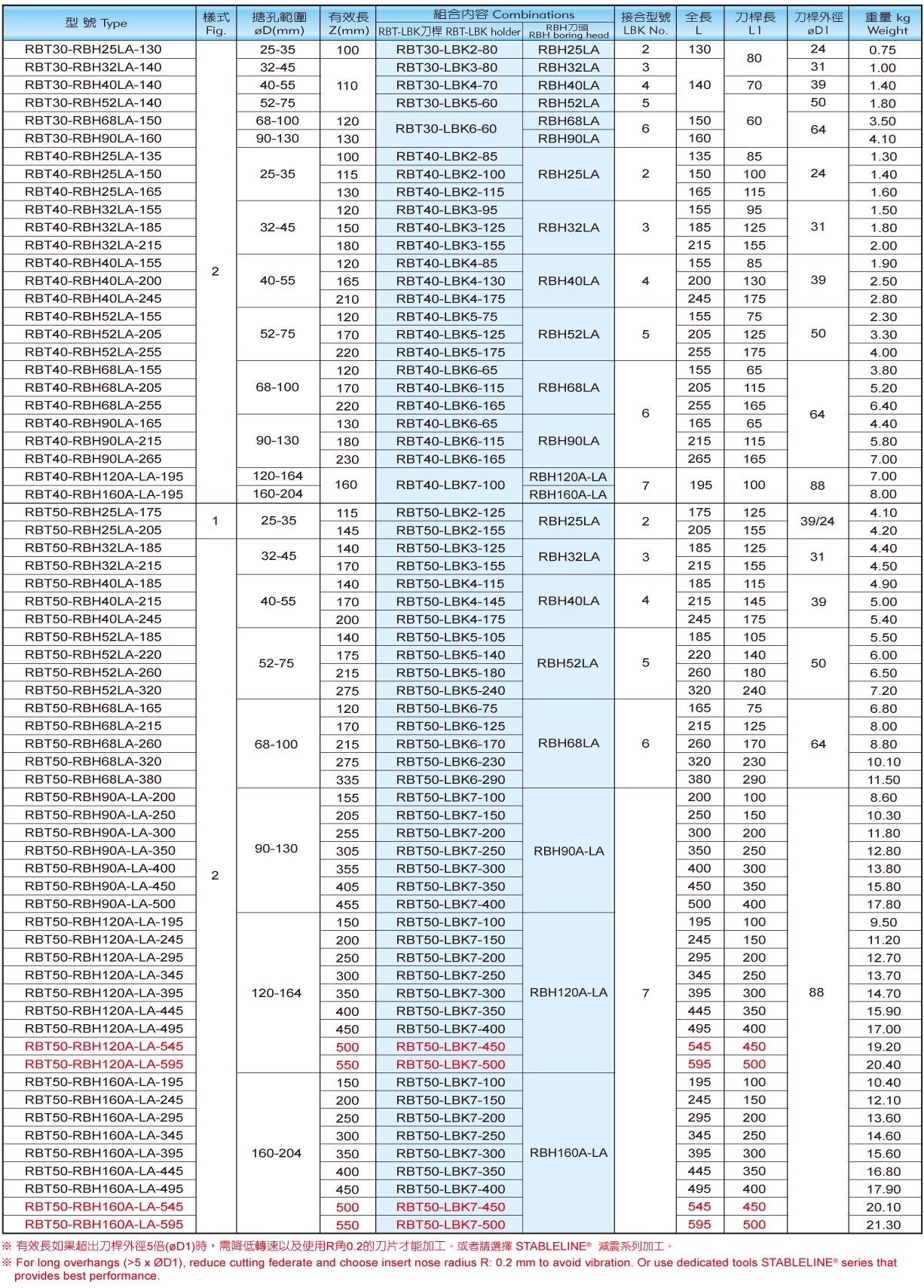

  • 產品規格
型號

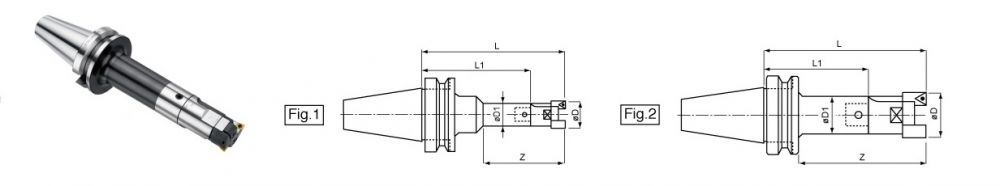

Model No.		樣式
Fig.		搪孔範圍
ØD (mm)		有效長
Z		LBK刀桿 LBK shankRBH刀頭 RBH boring head接合型號
LBK No.		全長
L		刀桿長
L1		刀桿外徑
ØD1		重量
KG
BT30-RBH25LA-130 2 25-35 100 BT30-LBK2-80 RBH25LA 2 130 80 24 0.8
BT30-RBH32LA-140 32-45 110 BT30-LBK3-80 RBH32LA 3 140 31 1
BT30-RBH40LA-140 40-55 BT30-LBK4-70 RBH40LA 4 70 39 1.4
BT30-RBH52LA-140 52-75 BT30-LBK5-60 RBH52LA 5 60 50 1.8
BT30-RBH68LA-150 68-100 120 BT30-LBK6-60 RBH68LA 6 150 64 3.5
BT30-RBH90LA-160 90-130 130 RBH90LA 160 4.1
BT40-RBH25LA-135 2 25-35 100 BT40-LBK2-85 RBH25LA 2 135 85 24 1.3
BT40-RBH25LA-165 130 BT40-LBK2-115 165 115 1.6
BT40-RBH32LA155 32-45 120 BT40-LBK3-95 RBH32LA 3 155 95 31 1.5
BT40-RBH32LA-185 150 BT40-LBK3-125 185 125 1.8
BT40-RBH32LA-215 180 BT40-LBK3-155 215 155 2
BT40-RBH40LA-155 40-55 120 BT40-LBK4-85 RBH40LA 4 155 85 39 1.9
BT40-RBH40LA-200 165 BT40-LBK4-130 200 130 2.5
BT40-RBH40LA-245 210 BT40-LBK7-175 245 175 2.8
BT40-RBH52LA-155 52-75 120 BT40-LBK5-75 RBH52LA 5 155 75 50 2.3
BT40-RBH52LA205 170 BT40-LBK5-125 205 125 3.3
BT40-RBH52LA255 220 BT40-LBK5-175 255 175 4
BT40-RBH68LA-155 68-100 120 BT40-LBK6-65 RBH68LA 6 155 65 64 3.8
BT40-RBH68LA-205 170 BT40-LBK6-115 205 115 5.2
BT40-RBH68LA255 220 BT40-LBK6-165 255 165 6.4
BT40-RBH90LA-165 90-130 130 BT40-LBK6-65 RBH90LA 165 65 4.4
BT40-RBH90LA-215 180 BT40-LBK6-115 215 115 5.8
BT40-RBH90LA-265 230 BT40-LBK6-165 265 165 7
BT40-RBH120LA-165 120-164 130 BT40-BST-70 RBH120LA BST 165 70 95 7
BT40-RBH160LA-165 160-204 RBH160LA 8
BT50-RBH25LA-160 2 25-35 110 BT50-LBK2-110 RBH25LA 2 160 110 24 4.1
BT50-RBH25LA-190 140 BT50-LBK2-140 190 140 4.2
BT50-RBH32LA-185 32-45 135 BT50-LBK3-125 RBH32LA 3 185 125 31 4.4
BT50-RBH32LA-215 165 BT50-LBK3-155 215 155 4.5
BT50-RBH40LA-185 40-55 135 BT50-LBK4-115 RBH40LA 4 185 115 39 4.9
BT50-RBH40LA-215 165 BT50-LBK4-145 215 145 5
BT50-RBH40LA-245 195 BT50-LBK4-175 245 175 5.4
BT50-RBH40LA-275 225 BT50-LBK4-205 275 205 5.5
BT50-RBH52LA-185 52-75 135 BT50-LBK5-105 RBH52LA 5 185 105 50 5.5
BT50-RBH52LA-260 210 BT50-LBK5-180 260 180 6.5
BT50-RBH52LA-320 270 BT50-LBK5-240 320 240 7.2
BT50-RBH52LA-380 1 <ø64=270L BT50-LBK5-300 380 300 64/50 8.6
>ø64=330L
BT50-RBH68LA-185 2 68-100 135 BT50-LBK6-95 RBH68LA 6 185 95 64 7
BT50-RBH68LA-260 210 BT50-LBK6-170 260 170 8.8
BT50-RBH68LA-320 270 BT50-LBK6-230 320 230 10.1
BT50-RBH68LA-380 330 BT50-LBK6-290 380 290 11.5
BT50-RBH68LA-440 1 <ø90=270L BT50-LBK6-350 440 350 90/64 16
>ø90=390L
IBT50-RBH68LA-440 2 390 IBT50-LBK6-350 440 350 64 13.7
BT50-RBH90LA-195 90-130 145 BT50-LBK6-95 RBH90LA 195 95 7.6
BT50-RBH90LA-270 220 BT50-LBK6-170 270 170 9.4
BT50-RBH90LA-330 280 BT50-LBK6-230 330 230 10.7
BT50-RBH90LA-390 340 BT50-LBK6-290 390 290 12.1
BT50-RBH90LA-450 1 400 BT50-LBK6-350 450 350 90/64 16.6
IBT50-RBH90LA-450 2 IBT50-LBK6-350 64 14.3
BT50-RBH120LA-195 120-164 150 BT50-BST-100 RBH120LA BST 195 100 95 8.9
BT50-RBH120LA-245 200 BT50-BST-150 245 150 10.6
BT50-RBH120LA295 250 BT50-BST-200 295 200 13.3
BT50-RBH120LA-345 300 BT50-BST-250 345 250 15.3
BT50-RBH120LA-395 350 BT50-BST-300 395 300 16.7
BT50-RBH120LA-445 400 BT50-BST-350 445 350 21.1
BT50-RBH120LA-495 450 BT50-BST-400 495 400 23.6
BT50-RBH160LA-195 160-204 150 BT50-BST-100 RBH160LA 195 100 9.9
BT50-RBH160LA-245 200 BT50-BST-150 245 150 11.6
BT50-RBH160LA-295 250 BT50-BST-200 295 200 14.3
BT50-RBH160LA-345 300 BT50-BST-250 345 250 16.3
BT50-RBH160LA-395 350 BT50-BST-300 395 300 19.7
BT50-RBH160LA-445 400 BT50-BST-350 445 350 22.1
BT50-RBH160LA-495 450 BT50-BST-400 495 400 24.6
