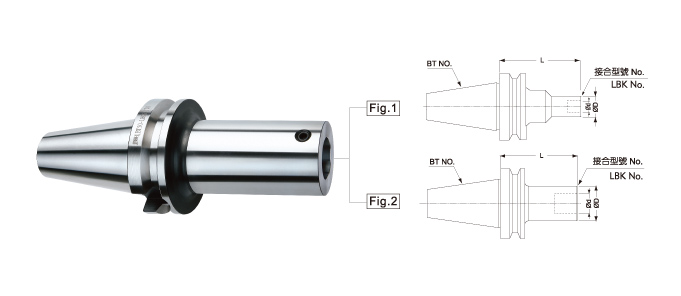

| 型號 Type | 樣式
Fig. | 長度
L (mm) | 外徑 ØD (mm) | 接合搪刀頭 Applicable Boring Heads | 重量 Weight (kg) |
|---|
| BT30-LBK1-070L |
2 |
70 |
19 |
CBH20; MBH20 |
0.5 |
| BT30-LBK2-080L |
80 |
24 |
RBH25(LA) ; CHB25; MBH16, 25 |
0.6 |
| BT30-LBK3-080L |
80 |
31 |
RBH32(LA) ; CBH32; MBH32 |
0.7 |
| BT30-LBK4-070L |
70 |
39 |
RBH40(LA) ; CBH40 ; MBH40; CBI4 |
0.8 |
| BT30-LBK5-060L |
60 |
50 |
RBH52(LA) ; CBH52 ; MBH52; CBI5 |
0.8 |
| BT30-LBK6-060L |
60 |
64 |
RBH68(LA); RBH90(LA); CBH68 ;
CHB100 ; CBH150 ; MBH68; CBI6 |
1.0 |
| BT40-LBK1-075L |
2 |
75 |
19 |
CBH20; MBH20 |
1.0 |
| BT40-LBK1-105L |
105 |
1.2 |
| BT40-LBK2-085L |
85 |
24 |
RBH25(LA); CBH25 ; MBH16,25 |
1.1 |
| BT40-LBK2-115L |
115 |
1.4 |
| BT40-LBK3-095L |
95 |
31 |
RBH32(LA) ; CBH32; MBH32 |
1.2 |
| BT40-LBK3-125L |
125 |
1.5 |
| BT40-LBK3-155L |
155 |
1.7 |
| BT40-LBK4-085L |
85 |
39 |
RBH40(LA) ; CBH40 ;MBH40; CBI4 |
1.3 |
| BT40-LBK4-130L |
130 |
1.9 |
| BT40-LBK4-175L |
175 |
2.2 |
| BT40-LBK5-075L |
75 |
50 |
RBH52(LA) ; CBH52 ; MBH52; CBI5 |
1.3 |
| BT40-LBK5-125L |
125 |
2.3 |
| BT40-LBK5-175L |
175 |
3 |
| BT40-LBK6-065L |
65 |
64 |
RBH68(LA) ; RBH90(LA) ; CBH68 ;
CHB100 ; CBH150 ; MBH68 ; CBI6 |
1.3 |
| BT40-LBK6-115L |
115 |
2.7 |
| BT40-LBK6-165L |
165 |
3.9 |
| BT50-LBK1-115L |
1 |
115 |
ø31(L30) / ø19 |
CBH20 |
4 |
| BT50-LBK1-145L |
145 |
4.1 |
| BT50-LBK2-110L |
2 |
110 |
24 |
RBH25(LA) ; CHB25; MBH16, 25 |
2.9 |
| BT50-LBK2-140L |
140 |
4 |
| BT50-LBK3-125L |
125 |
31 |
RBH32(LA) ; CBH32 ; MBH32 |
4.1 |
| BT50-LBK3-155L |
155 |
4.2 |
| BT50-LBK4-115L |
115 |
39 |
RBH40(LA) ; CBH40 ; MBH40 ; CBI4 |
4.3 |
| BT50-LBK4-145L |
145 |
4.4 |
| BT50-LBK4-175L |
175 |
4.8 |
| BT50-LBK4-205L |
205 |
4.9 |
| BT50-LBK5-105L |
105 |
50 |
RBH52(LA) ; CBH52 ; MBH52 ; CBI5 |
4.5 |
| BT50-LBK5-180L |
180 |
5.5 |
| BT50-LBK5-240L |
240 |
6.2 |
| BT50-LBK5-300L |
1 |
300 |
ø64(L60) / ø50 |
7.6 |
| BT50-LBK6-095L |
2 |
95 |
64 |
RBH68(LA) ; RBH90(LA) ; CBH68 ;
CHB100 ; CBH150 ; MBH68 ; CBI6 |
4.5 |
| BT50-LBK6-170L |
170 |
6.3 |
| BT50-LBK6-230L |
230 |
7.6 |
| BT50-LBK6-290L |
290 |
9 |
| BT50-LBK6-350L |
1 |
350 |
ø90(L120) / ø64 |
13.5 |
| IBT50-LBK6-350L |
2 |
350 |
64 |
11.2 |
| BT40-BST-070L |
3 |
70 |
95 |
RBH120(LA); RBH160(LA);
RBH200,300,400;
CBH10B, 150B;
RBH200LA~RBH500LA;
CBH200~CBH500;
CBR200~CBR500;
WBST150,200,300,400 |
3.2 |
| BT50-BST-100L |
100 |
5.1 |
| BT50-BST-150L |
150 |
6.8 |
| BT50-BST-200L |
200 |
9.6 |
| BT50-BST-250L |
250 |
11.5 |
| BT50-BST-300L |
300 |
14.4 |
| BT50-BST-350L |
350 |
16.8 |
| BT50-BST-400L |
400 |
19.3 |
| BT50-FMA47.625-75 |
75 |
128 |
RBH600LA~RBH1600LA ;
CBH600~CBH1600 ; CBR600~CBR1600 |
7.0 |
