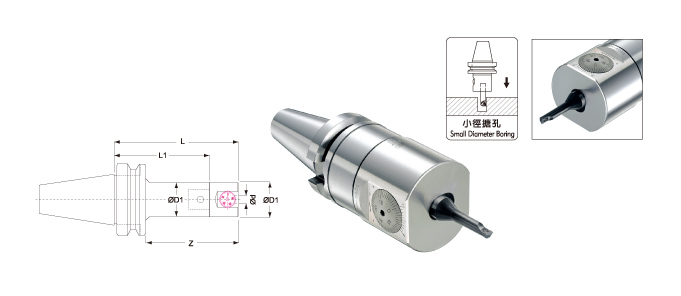

| 型號 Type | 移動量
F (mm) | 延伸長
Z | Tool Connection | 接合型號
LBK No. | 全長
L | 刀桿長
L1 | 外徑
ØD1 | 重量
KG |
|---|
| LBK Shank | CBI | 小徑搪刀桿 |
|---|
| BT30-CBI4-BJ10-5PCS |
0-2.0 |
70 |
BT30-LBK4-070 |
CBI4 |
BJ10-5PCS |
4 |
100 |
70 |
39 |
1.9 |
| BT30-CBU5-BJ12-5PCS |
0-3.5 |
70 |
BT30-LBK5-060 |
CBI5 |
BJ12-5PCS |
5 |
100 |
60 |
50 |
2.3 |
| BT30-CBI6-BJ16-8PCS |
0-5.0 |
80 |
BT30-LBK6-060 |
CBI6 |
BJ16-8PCS |
6 |
110 |
60 |
64 |
4.6 |
| BT40-CBI4-BJ10-5PCS |
0-2.0 |
75 |
BT40-LBK4-085 |
CBI4 |
BJ10-5PCS |
4 |
115 |
85 |
39 |
2.4 |
| BT40-CBI5-BJ12-5PCS |
0-3.5 |
75 |
BT40-LBK5-075 |
CBI5 |
BJ12-5PCS |
5 |
115 |
75 |
50 |
2.8 |
| BT40-CBI6-BJ16-8PSC |
0-5.0 |
75 |
BT40-LBK6-065 |
CBI6 |
BJ16-8PCS |
6 |
115 |
65 |
64 |
4.9 |
| BT50-CBI4-BJ10-5PCS |
0-2.0 |
95 |
BT50-LBK4-115 |
CBI4 |
BJ10-5PCS |
4 |
145 |
115 |
39 |
5.4 |
| BT50-CBI5-BJ12-5PCS |
0-3.5 |
95 |
BT50-LBK5-105 |
CBI5 |
BJ12-5PCS |
5 |
145 |
105 |
50 |
6.0 |
| BT50-CBI6-BJ16-8PCS |
0-5.0 |
95 |
BT50-LBK6-095 |
CBI6 |
BJ16-8PCS |
6 |
145 |
95 |
64 |
8.1 |
CBI4專用小徑搪刀桿BJ型 <搪孔範圍Ø8-Ø24mm>

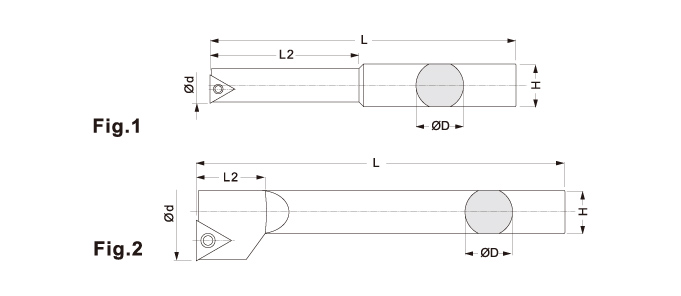

| 型號 Type | Fig. | ØD (mm) | Ød (mm) | L (mm) | L2 (mm) | H (mm) | 刀片規格
Insert | 螺絲 Clamp Screw | 扳手 Wrench | Weight(kg) |
|---|
| BJ1008-32 |
1 |
10 |
8~10 |
64 |
32 |
9 |
TB..0601.. |
ø2.7xM2 |
T6 |
0.025 |
| BJ1010-40 |
10~12 |
72 |
40 |
0.035 |
| BJ1012-45 |
2 |
12~16 |
77 |
27 |
TB..0902.. |
M2.5 |
T8 |
0.045 |
| BJ1016-45 |
16~20 |
77 |
27 |
| BJ1020-45 |
20~24 |
77 |
27 |
T8 |
| BJ10-5PCS |
BJ1008-32 BJ1010-40 BJ1012-45 BJ1016-45 BJ1020-45 |
CBI5專用小徑搪刀桿BJ型 <搪孔範圍 Ø8-Ø27mm>
| 型號 Type | Fig. | ØD (mm) | Ød (mm) | L (mm) | L2 (mm) | H (mm) | 刀片規格
Insert | 螺絲 Clamp Screw | 扳手 Wrench | Weight |
|---|
| BJ1208-32 |
1 |
12 |
8~10 |
64 |
32 |
9 |
TB..0601.. |
ø2.7xM2 |
T6 |
0.035 |
| BJ1210-40 |
10~12 |
72 |
40 |
0.045 |
| BJ1212-45 |
12~16 |
77 |
45 |
TB..0902.. |
M2.5 |
T8 |
0.055 |
| BJ1216-45 |
2 |
16~20 |
77 |
22 |
0.06 |
| BJ1220-45 |
20~24 |
77 |
25 |
0.065 |
| BJ12-5PCS |
BJ1208-32 BJ1210-40 BJ1212-45 BJ1216-45 BJ1220-45 |
CBI6專用小徑搪刀桿BJ型 <搪孔範圍 Ø8-Ø50mm>
| 型號 Type | Fig. | ØD (mm) | Ød (mm) | L (mm) | L2 (mm) | H (mm) | 刀片規格
Insert | 螺絲 Clamp Screw | 扳手 Wrench | Weight |
|---|
| BJ1606-24 |
1 |
16 |
6~8 |
76 |
24 |
15 |
WB..0601.. |
ø2.7xM2 |
T6 |
0.07 |
| BJ1608-32 |
8~10 |
75 |
32 |
TB..0601.. |
0.065 |
| BJ1610-40 |
10~12 |
40 |
0.075 |
| BJ1612-53 |
12~16 |
85 |
53 |
TB..0902.. |
M2.5 |
T8 |
0.085 |
| BJ1616-68 |
16~20 |
100 |
68 |
0.125 |
| BJ1620-83 |
2 |
20~25 |
115 |
83 |
0.17 |
| BJ1625-90 |
25~30 |
122 |
90 |
0.185 |
| BJ1630-90 |
30~40 |
90 |
0.19 |
| BJ1640-90 |
40~50 |
90 |
0.205 |
| BJ16-8PCS |
BJ1608-32 BJ1610-40 BJ1612-53 BJ1616-68 BJ1620-83 BJ1625-90 BJ1630-90 BJ1640-90 |
*表示盒裝包裝
*切削加工時，小徑搪刀桿以3倍直徑伸出量為佳。
